PCB Inspection System:

PCB inspection is an essential element in any electronics manufacturing process.

The PCB inspection enables faults to be detected as soon after the manufacture process as possible.

As such the PCB inspection process is an essential element of any PCB manufacturing process.

Whether for large scale / high volume or low volume manufacturing, the PCB inspection process is essential, especially with the high level of complexity or many of today's boards.

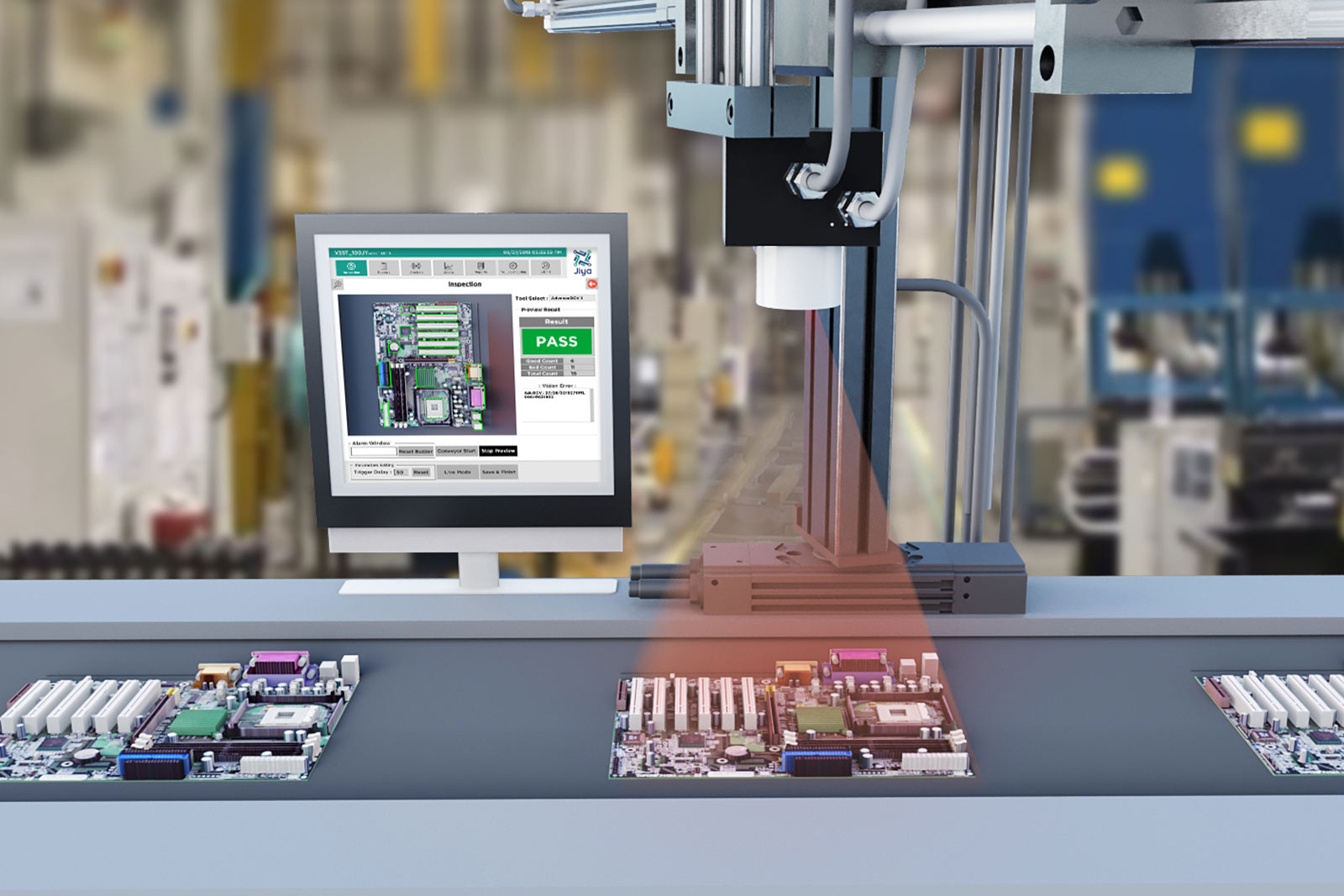

Machine vision system inspects PCB for proper number, size and placement of components. Any irregularity in the placement of components can affect pcb’s performance and lifespan.

Features:

• Board Identification
• Number and Size check
• wafer inspection probing, mounting, dicing
• Components Placement check
• Template and pattern matching
